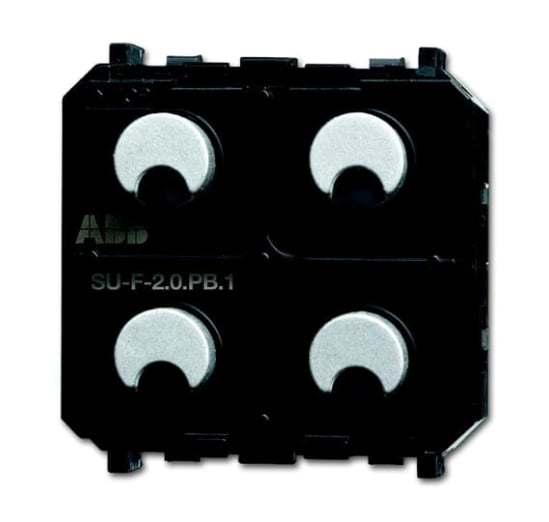

Switch 2/4 gang, Zenit
For transmitting switching, push-button, dimming and blind commands to an ABB-free@home® actuator. For contacting 2gang rocker 6230-2x-xxx, 6231-2x-xxx, 6232-2x-xxx, 6233-2x-xxx and 6234-2x-xxx. The bus can be connected via enclosed terminal block.
| Specification | |
|---|---|
| Power Supply | 24 V DC (via bus line) |
| Bus subscribers | 1 (12mA) |
| Connection | |
| Bus connection terminal | 0.4-0.8 mm |
| Line type | J-Y(St)Y, 2 x 2x 0.8 mm |
| Wire stripping | 6-7 mm |
| Ambient temperature | -5 ¡C Ð +45 ¡C |
| Storage T¡ | -20 ¡C Ð +70 ¡C |
| Properties | |
| Technology Free@Home | |
| Brand ABB | |
| IP rating IP20 | |
