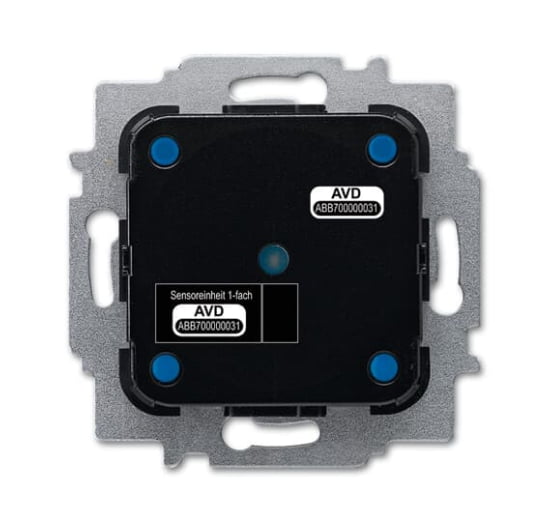

Switch 1/2 gang, Future linear, wireless
For transmitting switching, push-button, dimming and blind commands to an ABB-free@home® actuator. Communication with the free@home system is carried out wireless. For contacting 1gang rocker 6230-10-xxx, 6231-10-xxx, 6232-10-xxx, 6233-10-xxx und 6234-10-xxx. With fixing claws.
| Specification | |
|---|---|
| Operating voltage | 230 V AC, 50/60 Hz |
| Connection | |
| L, N (option), inputs and outputs non- floating | |
| Screw-type terminal | 2 x 2.5 mm2 rigid |
| 2 x 1.5 mm2 flexible | |
| Claw | With protective cover and reset (removable) |
| Transmission protocol | free@home wireless |
| Transmission frequency | 2.400 – 2.483 GHz |
| Maximum transmission power WL (wireless) | < 15 dBm |
| Power consumption | <1W |
| Protection type | IP20 |
| Ambient temperature | -5¡C – +45¡C |
| Storage temperature | -20¡C – +70¡C |
| Properties | |
| Technology Free@Home | |
| Brand ABB | |
| IP rating IP20 | |
