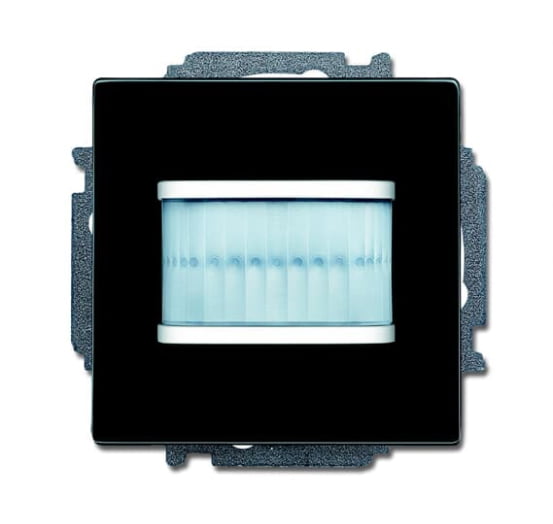

Movement detector, Future linear,
With select lens for detection with animal access. For automatic switching of ABB-free@home® actuators dependent on movement and brightness. Switch-off delay of the actuator can be programmed via the web interface of the System Access Point. The bus can be connected via enclosed terminal block.
| Specification | |
|---|---|
| Power Supply | 24 V DC (via bus line) |
| Bus subscribers | 1 (12mA) |
| Connection | |
| Bus connection terminal | 0.4-0.8 mm |
| Line type | J-Y(St)Y, 2 x 2x 0.8 mm |
| Wire stripping | 6-7 mm |
| Opening angle | 180 ¡ |
| Brightness limit value | 1 Ð 500 lux |
| Mounting height | 1.1 m to 1.3 m |
| Protection type | IP20 |
| Ambient temperature | -5 ¡C Ð +45 ¡C |
| Storage T¡ | -20 ¡C Ð +70 ¡C |
| Properties | |
| Technology Free@Home | |
| Brand ABB | |
| Finish Black | |
| IP rating IP20 | |
| EAN 4011400000000 | |
