KNX Cable (100m) LSOH Green

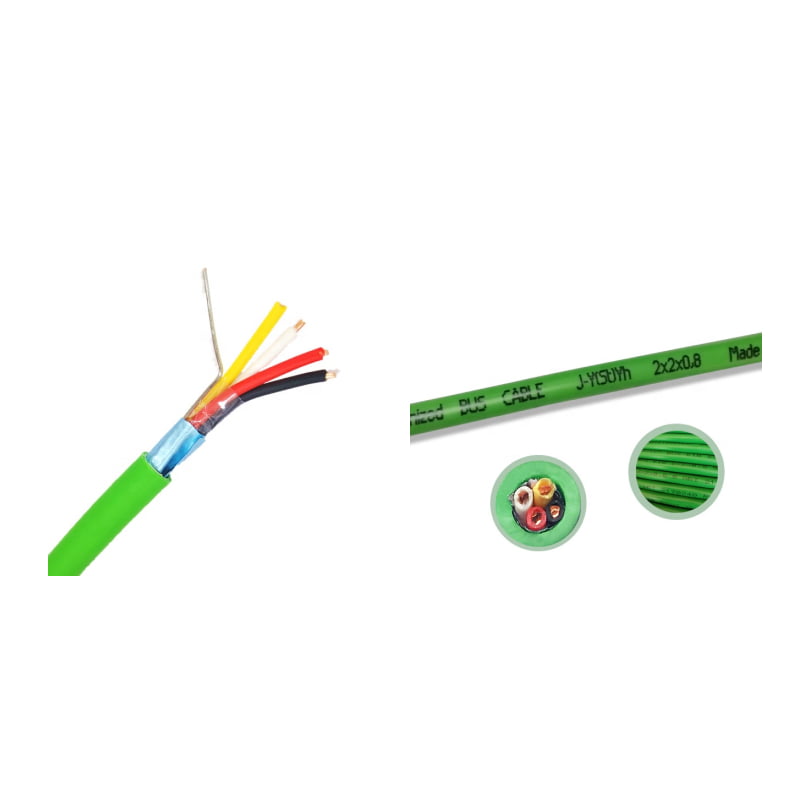

“KNX cable (also known as TP1 cable) features two twisted pairs of solid conductor with a foil screen and tinned copper drain wire in a green LSHF jacket. It has been tested and certified as being suitable for use in KNX systems and bears the KNX logo.
Description
Conductor: 20(1)AWG, Solid Bare Copper
Insulation: Polyethylene
No of Pairs: 2
Fillers: 2 x Cotton Rope
Overall Tape: Clear Polyester
Drain Wire: 26 (7) AWG, Tinned Copper
Overall Screen: Aluminium/Polyester Foil
Colour Code: Pair 1- Red & Black, Pair 2- White & Yellow
Jacket: Low Smoke Halogen Free
Colour: Green
Overall Diameter: 6.8 +/- 0.2mm”
| Specification | |
|---|---|
| Working Voltage | 250V |
| Working Voltage (CE) | 450/750V |
| Test Voltage (AC) | 2.5Kv for 5 Mins |
| Capacitance (Cond. to Cond.) | 90 pF/m |
| Conductor Resistance | <37.7 Ω/KM @ 20 °C |
| Temperature Rating | -40 to +70 °C |
| Properties | |
| Technology KNX | |
| Brand MASER | |
