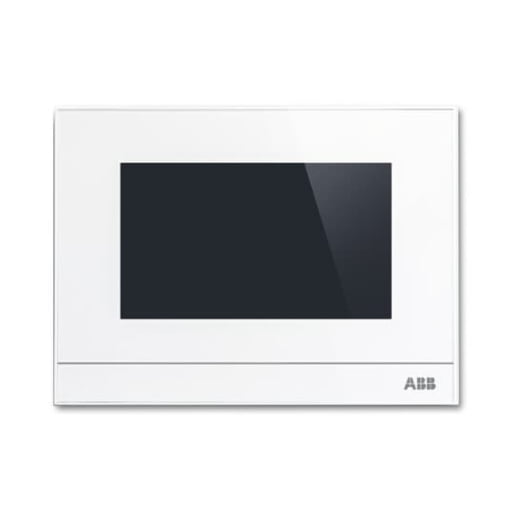

ABB-free@homeTouch 4.3″
For the central control of up to 16 configurable ABB-free@home® functions. For the display of configurable system messages. A configurable primary function can be triggered with a multi-touch gesture. Capacitive touch screen with closed glass surface. With integrated room temperature controller and temperature sensor. In connection with temperature sensor 6226/T the integrated room temperature controller can be fitted with a remote sensor. Suitable as room temperature controller extension unit (up to 8). Requires additional power supply 24 VDC; e.g. 6358-101. Power consumption: 150 mA Display size: 10.9 cm (4.3”) Display resolution: 480 x 854 Mounting height: 8 mm
| Specification | |
|---|---|
| Power supply (via a separate auxiliary power supply adaptor) | 24 V DC auxiliary voltage |
| power adaptors | Ð 6358-101 |
| Number of devices on power adaptor | Up to 50m 8 displays can be connected . Up to 100m 5 displays can be connected |
| Power consumption | 150 mA | 85 mA (Standby) |
| Inrush current | < 1.25 A |
| Power supply connection | |
| Line type | J-Y(St)Y, 2 x 2 x 0.8 mm |
| Wire stripping | 6 – 7 mm |
| Bus voltage | 24 V DC |
| Bus connection | |
| Line type | J-Y(St)Y, 2 x 2 x 0.8 mm 6 – 7 mm |
| Wire stripping | 6 – 7 mm |
| External RTC temperature sensor (optional) | 6226/T | DP4-T-1 |
| Diameter of cable duct | (optional) 20 mm |
| SD card slot | Micro SD |
| Protection type | IP20 |
| Ambient temperature | -5¡C – +45¡C |
| Storage temperature | -20¡C – +70¡C |
| Properties | |
| Technology Free@Home | |
| Brand ABB | |
| Finish White | |
| IP rating IP20 | |
